Good shock resistance and shock resistance; Security and stability
Good environmental performance; The brightness is adjustable

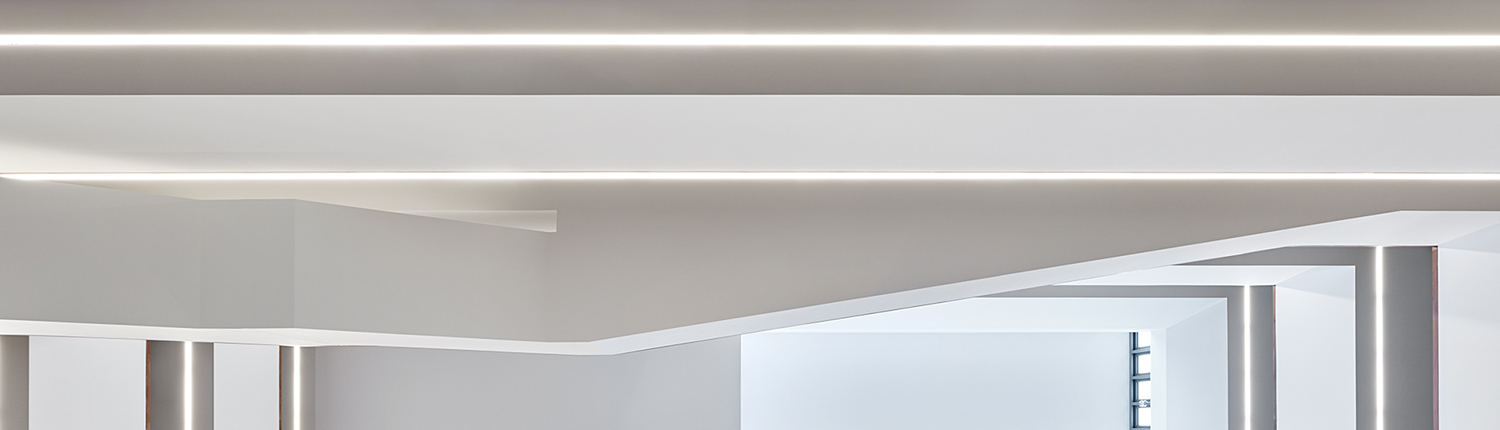

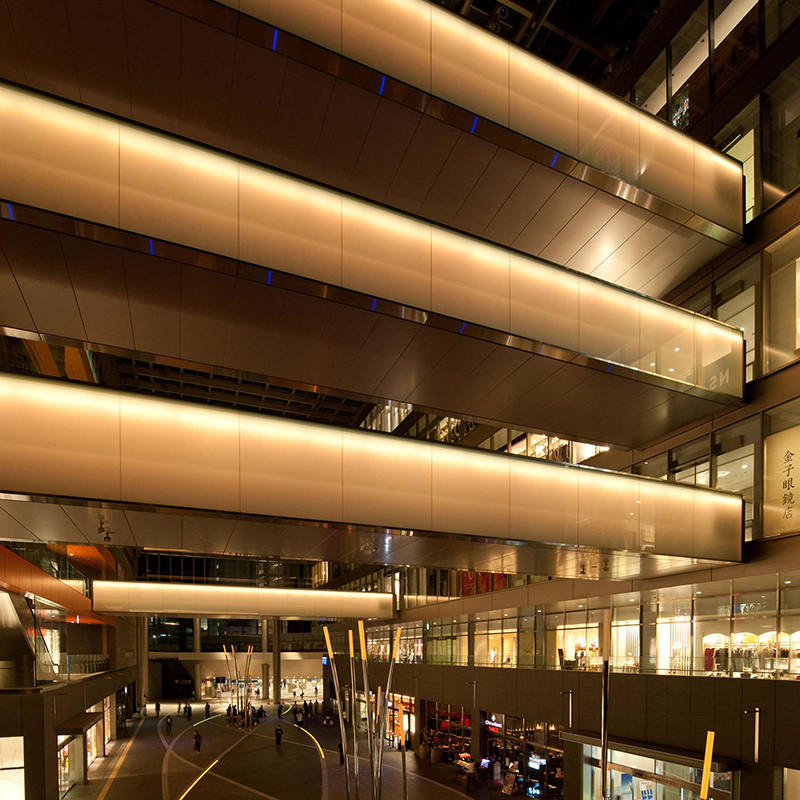

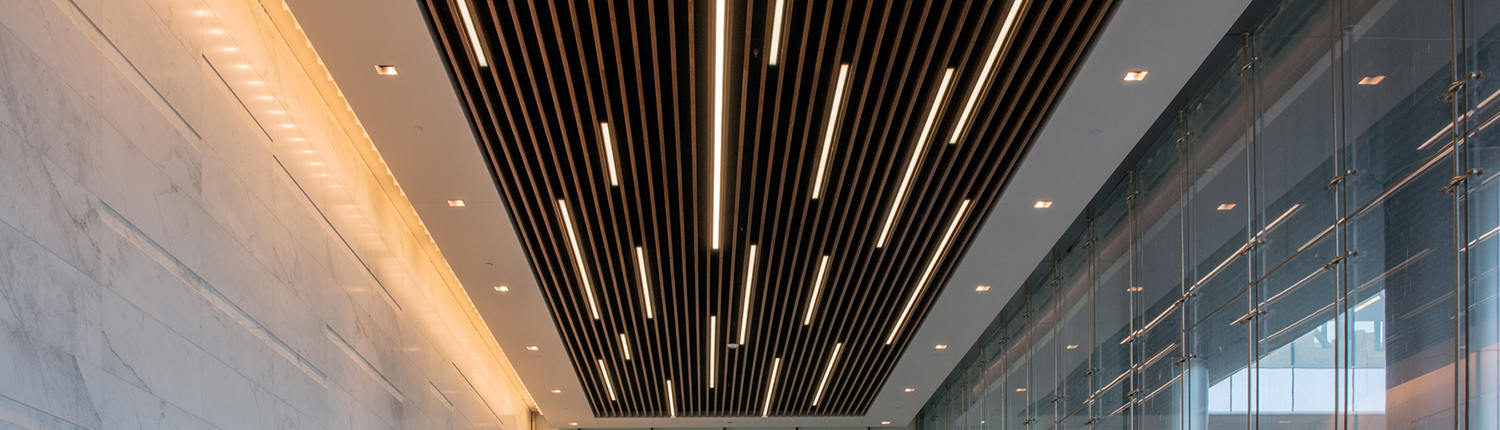

Widely used in the signboard advertising logo, the hotel house logo, the city landmark lighting, etc.
The newest generation technology: DMX512 parallel bus design.
Clip on-off style connection and anti-pull connection without connector design.
High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue.
Outdoor lighting protection and electrostatic discharge (ESD) protection design.
Flexible design ensures 4 kinds of mounting ways.

SPECIFICATION OPTICAL PARAMETERS
LED brand: CREE / OSRAM / Epistar
Color: RGB / W(2700K-6000K) / RGBW
Light source: 36pcs SMD /m or 48 pcs SMD/m
Beam Angle: 110°
Source life: 100,000H

ELECTRICAL PARAMETERS
Input : DC 24V / DC48V
Rated power: 9.6W / 12W

CONTROL PARAMETERS
Control Method : DMX512 / SPI / ON-OFF
Gray scale: 8bit / 12bit / 16bit
Control system : CM controllers and system / Third party standard DMX control system

STRUCTURAL PARAMETERS
Base material : High strength aluminum alloy + PC cover
Surface color : Aluminum color / Dark gray optional / custom color
Weight : 398g
Size : Length : 1000mm( 250mm-2000mm customization length available) width: 30mm height:15.5mm

ENVIRONMENTAL PARAMETERS
Working Temperature: : -25°to 50°
Storage Temperature: : -40°to 70°
Protection rate: : IP66
Application environment: Outdoor / Indoor
