Good shock resistance and shock resistance; Security and stability
Good environmental performance; The brightness is adjustable

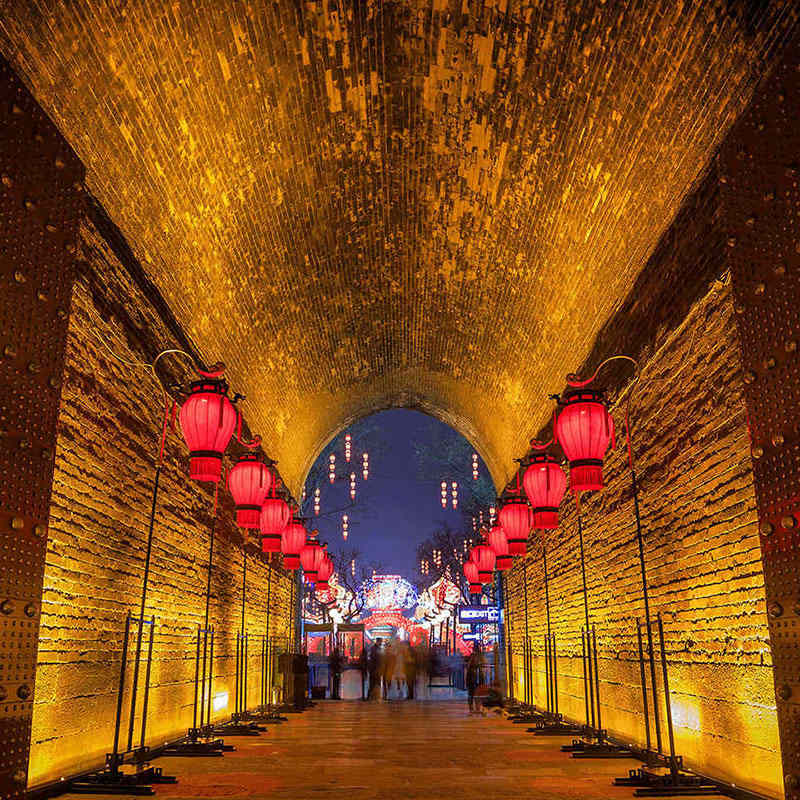

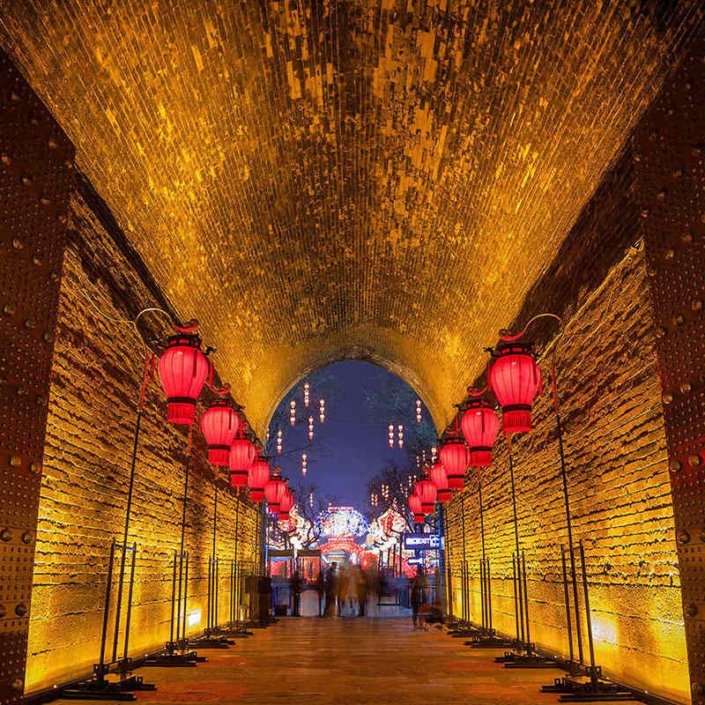

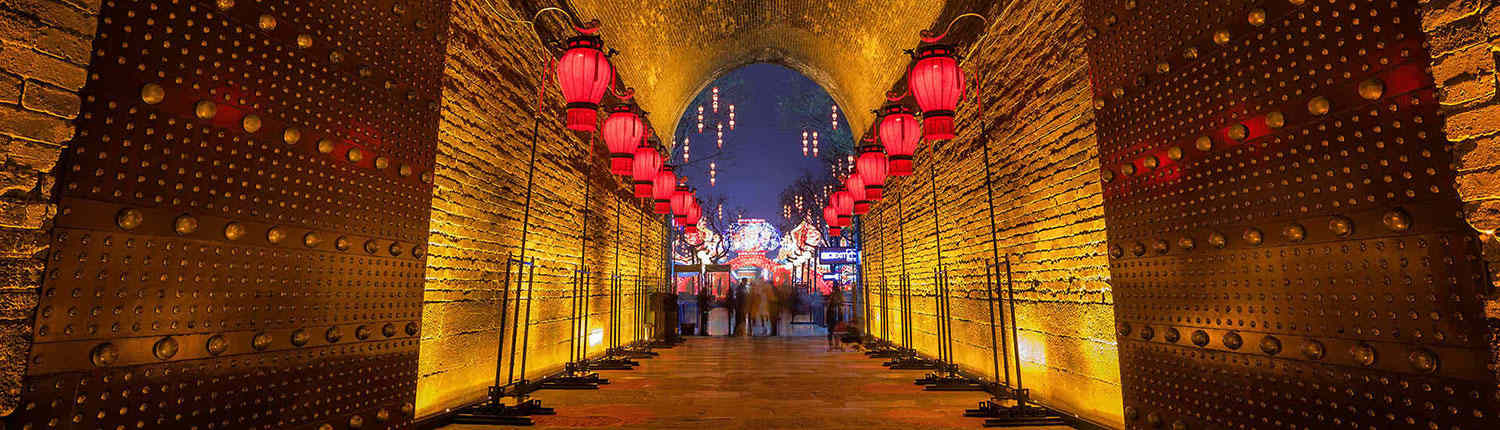

Widely used in the signboard advertising logo, the hotel house logo, the city landmark lighting, etc.
The newest generation technology: DMX512 parallel bus design.
Clip on-off style connection and anti-pull connection without connector design.
High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue.
Outdoor lighting protection and electrostatic discharge (ESD) protection design.
Flexible design ensures 4 kinds of mounting ways.

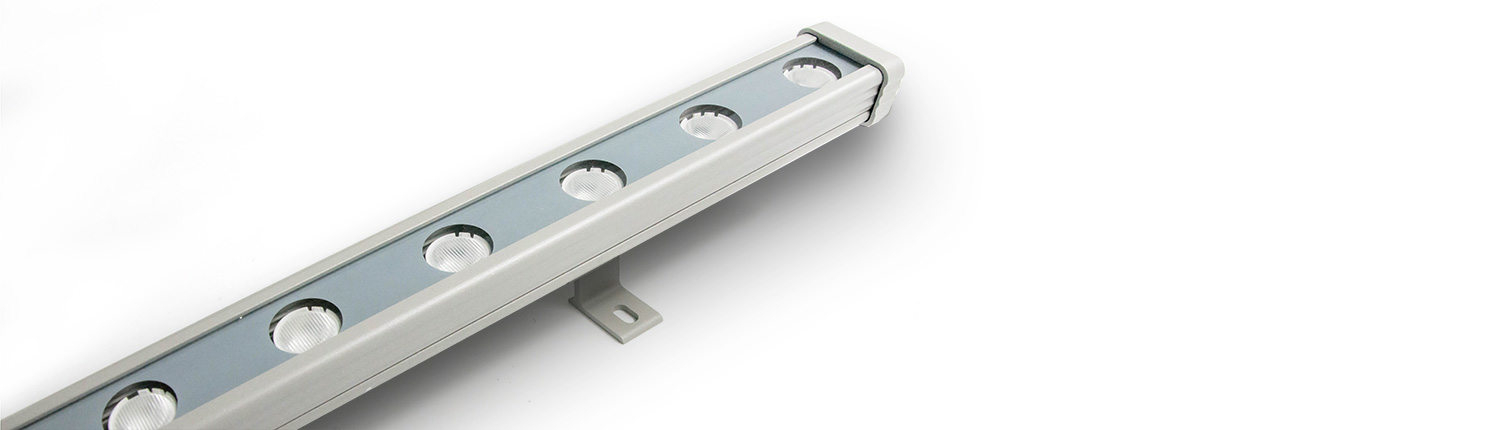

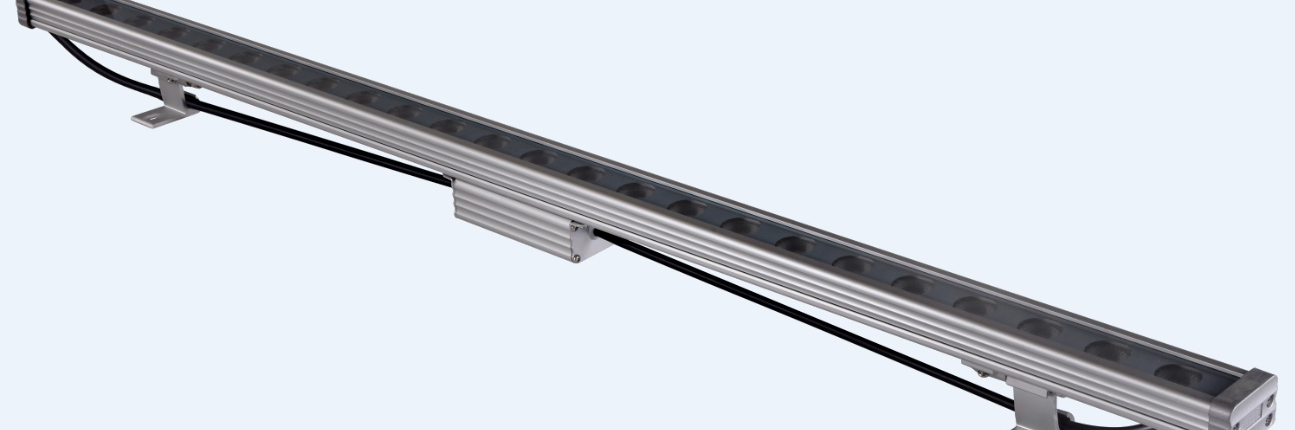

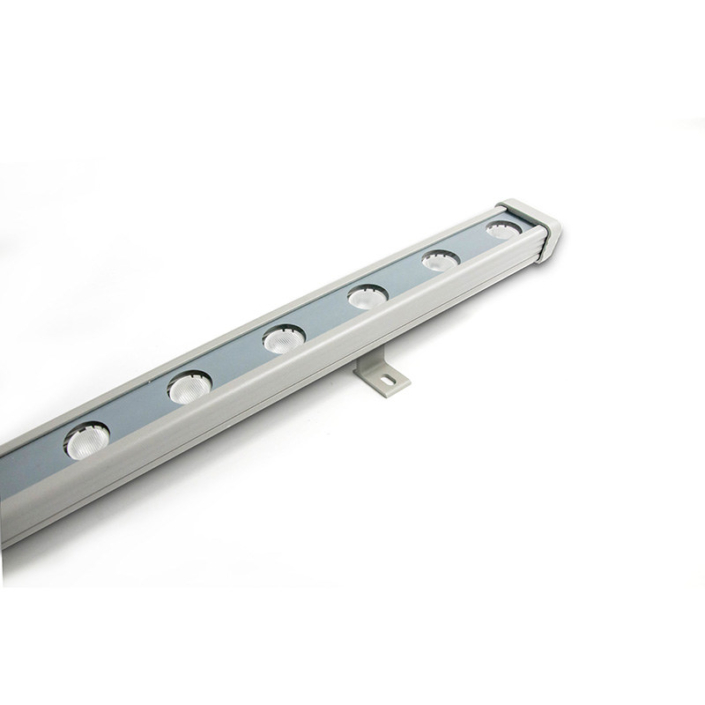

recessed led wall washer lights introduction

SPECIFICATION OPTICAL PARAMETERS
LED brand: CREE / OSRAM / Epistar
Color: RGB / W(2700K-6000K) / RGBW
Beam Angle: 10°/15°/30°/45°/60°
Source life: 50,000H

ELECTRICAL PARAMETERS
Input : DC 24V
Rated power: 18W / 24W / 30W

CONTROL PARAMETERS
Control Method : DMX512 / SPI / ON-OFF
Gray scale: 8bit / 12bit / 16bit
Control system: CM controllers and system / Third party standard DMX control system

STRUCTURAL PARAMETERS
Base material: High strength aluminum alloy + Tempered glass
Surface color : Aluminum color / Dark gray optional / custom color
Weight: 2100g
Size : 1000X47X65mm

ENVIRONMENTAL PARAMETERS
Working Temperature: : -25°to 50°
Storage Temperature: : -40°to 70°
Protection rate: : IP66
Application environment: Outdoor / Indoor
